Slim Metal Outdoor LED Display Power Supply 200W 5V LED Driver

Product Details:

Place of Origin:	China
Brand Name:	G-ORIENT
Certification:	ISO9001 / CE / ROHS / FCC
Model Number:	NHI200-5-B

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiable
Packaging Details:	20pcs/16Kgs / CARTONS,Carton size: 332018cm
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Paypal, Western Union, L/C
Supply Ability:	50,000pcs per month

Contact Now

Detailed Product Description

Size:	1908530mm	Output Power:	200W
High Efficiency:	88%	Input:	200-240V AC
Operating Temperature:	-40℃ ~ +70℃	Output:	5V DC / 40A
Highlight:	thin power supply , switched power supply

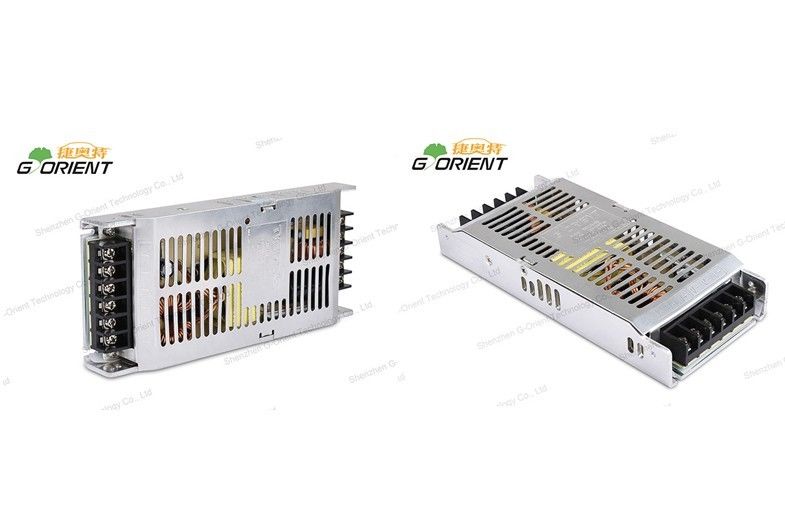

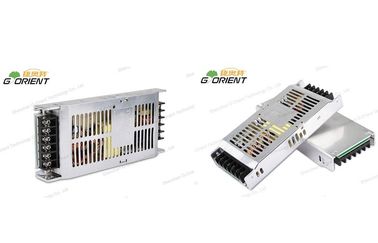

Slim Metal Outdoor LED Display Power Supply 200W 5V LED Driver

Features:
1. High power density,high efficiency,long life and high reliability
2. No Load power consumption<0.5W
3. 100% full load burn-in test
4. Universal AC input range
5. All using 105℃ long life electrolytic capacitors.
6. PCB soldering side with conformal coating
7. Suitable for critical applications
8. Output protections:OLP/OVP/SCP
9. CE RoHS ISO9001 approved
10. 2 years warranty

Applications:
• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine,
Puching Machine,Weeding Machine,Air Compressor etc.
• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.
• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.
• Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.
• Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.
• Electrical filed series: TV,VCRS,Radio ect.

Specifications:

Switching power supply		NHI200-5-B
OUTPUT	DC Voltage	5V
	Current Range	0~40A
	Rated Current	40A
	Rated Power	200W
	Ripple & Noise(max.)	<250mVp-p
	Voltage ADJ.Range	4.5~5.6V
	Voltage Tolerance	+/- 2.0%
	Line Regulation	+/- 0.5%
	Load Regulation	+/- 1.0%
	Setup,Rise Time	1000ms,50ms/230VAC
	Hold up time	20ms/230VAC
INPUT	Voltage Range	200-240VAC
	Frequency Range	47-63Hz
	Efficiency(Typ.)	83-88%
	AC Current	2.5A/230VAC
	Inrush Current(max.)	55A/230VAC
	Leakage Current	< 3.5mA /240VAC
Protection	Over Load	105 ~ 150% rated output power
	Over Load	Protection type: Constant current limiting,recovers automatically after fault condition is removed
	Over Voltage	5.75~ 7.0V
	Over Voltage	Protection type: Shut down O/P voltage,re-power on to recover
	Over Temperature	100℃ +/- 5℃
	Over Temperature	Protection type: Shut down O/P voltage,recovers automatically after temperature goes down
Environment	Working Temp.	-40 ~ +60℃ (Refer to output load derating curve)
	Working Humidity	20 ~ 90% RH, non-condensing
	Storage Temp., Humidity	-40 ~ +85℃, 10 ~ 95% RH
	Temp.Coefficient	+/-0.03%/℃ (0 ~ 50℃)
	Vibration	10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes
Safety	Safety standards	UL60950-1 approved
	Withstand Voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH
Others	MTBF	271.9K hrs min. MIL-HDBK-217F(25℃)
	Dimension	1908530mm (LWH)
	Packing	0.8kg; 20pcs/16Kgs
Note	1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.
	2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.
	3. Tolerance: includes set up tolerance,line regulation and load regulation.
	4. Please connect positive pole of input voltage with mark”L” of terminal block,connect negative pole of input voltage with mark”N” of terminal block,using DC voltage for input voltage

Competitive Advantage:
* Ultra-thin 30mm
* High efficiency up to 85%
* Ultra-low start up temp.(- 30℃)
* synchonous rectification
* Small size,ultra-light and easy to install
* CE / ROHS / FCC approval
* Protections:Short circuit / Overload / Over voltage / Over temperature
