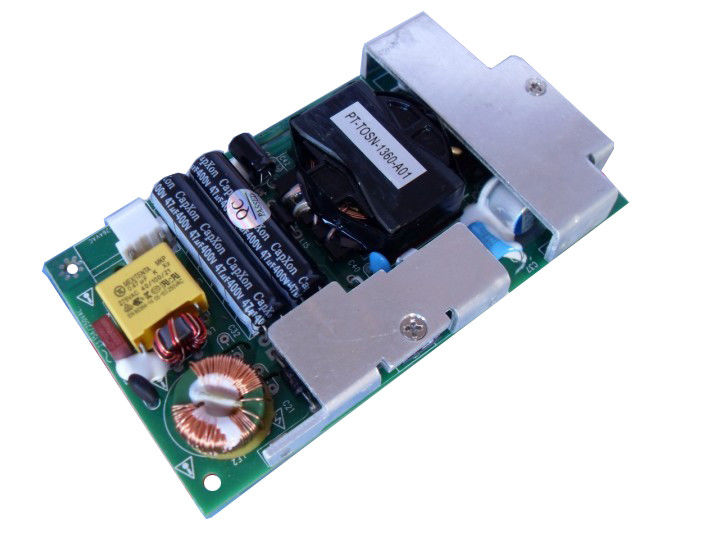

Constant Voltage 12V 5A 60W LCD TV Power Supply Board 120V 60Hz

Constant Voltage 12V 5A 60W LCD TV Power Supply Board 120V 60Hz

  • Constant Voltage 12V 5A 60W LCD TV Power Supply Board 120V 60Hz
Constant Voltage 12V 5A 60W LCD TV Power Supply Board 120V 60Hz
Product Details:
Place of Origin: China
Brand Name: STARWELL
Certification: UL,CE,ROHS, FCC,GS,SAA,C-TICK
Model Number: LD1360P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Carton box
Delivery Time: 10-15 days
Payment Terms: Ex works
Supply Ability: 1, 000, 000PCS/week
Contact Now
Detailed Product Description
High Light:

Slim Power Supply

,

Thin Power Supply





Constant Voltage 12V 5A 60W LCD TV Power Supply Board 120V 60Hz





Features:



> input voltage range: 100~240VAC

> output: 12V 5A

> Effiency: 85% minimum

> Ripple and Noise: 100mV maximum

> Dimension: 165*65*13mm

> Certificate: UL,CE,FCC,GS, SAA,C-TICK,CB,KC certificates.

> Safety protection: over load, over voltage, short ciruict, open load protection.




Specifications



Input Rated Voltage :

100Vac~240Vac

Input Frequency Range:

47Hz~63Hz

Input Inrush Current :

1.8A max

Efficiency  :

85%(MIN)at Rated Voltage

Output:

12V 5A thin type

Output power :

60W

Ripple and Noise :

<150Mv at full road with 20MHz bandwidth

Turn On Delay Time:

<3S  (AC:110V and full load)

Safety protection :

over voltage and current protection.

Leakage Current:

<5mA

Certificate:

CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK

Safety Standard :

EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006

Application:

LED TV, TV screen, TV display.





MODEL LIST:



LCD tv power supply
Model Input Voltage Output Power Output (1) Output(2) Output(3) Output(4) LCD inch Dimension
(mm)
LD122P 90-264V 36W 12V3A NO NO NO 15-17'' 90*40*20
LD123P 90-264V 36W 12V3A NO NO NO 15-17'' 90*40*20
LD050P 90-264V 50W 12V4A NO NO NO 15-19'' 130*50*23
LD125P 90-264V 60W 12V5A NO NO NO 15-22'' 130*50*23
LD128P 90-264V 96W 12V8A NO NO NO 15-22'' 160*62*26
LD1200P 90-264V 120W 12V10A NO NO NO 15-23'' 160*62*26
LD2600P 90-264V 96W 12V4A 24V2A NO NO 24-26'' 151*100*30
LED TV POWER SUPPLY
Model Input Voltage Output Power Output (1) Output(2) Output(3) Output(4) screen
size
Dimension
(mm)
LD1350P 90-264V 36W 12V3A NO NO NO 15-19'' 165*65*13
LD1360P 90-264V 60W 12V5A NO NO NO 15-22'' 165*65*13
LD1361P 90-264V 60W 12V4A 5V2A NO NO 15-22'' 165*65*13
LD1905P 90-264V 95W 19V5A NO NO NO 15-23'' 165*70*13
LD3200P 90-264V 100W 12V2A 24V2.5A 5V3A 5VSB0.5A 26-32'' 180*180*13
LD4200P 90-264V 180W 12V5A 24V4A 5V4A 5VSB2.0A 37-47'' 180*180*13
LD5500P 90-264V 280W 12V5A 24V8A 5V3A 5VSB2.0A 47-55'' 280*180*13





EMC Standards & Safety Standards / EMC Standards





1.1.    EMC Standards





GB9254

GB17625.1

GB13837

FCC- Part15

EN 55022

EN55024

CISPR 22

EN 61000-4-4

EN 61000-3-2

EN 61000-3-3

EN 61000-4-2

EN 61000-4-3

EN 61000-4-5

EN 61000-4-6

EN 61000-4-8

EN 61000-4-11



1.2.    Safety Standards



Type

Country

Standard

Type

Country

Standard

CCC

China

GB4943

CE

Europe

EN60950-1

CCC

China

GB8898

CB

CB

IEC60950

UL/CUL

USA

UL60950-1

C-TICK

Australia

AS/NZ60950

KC

Korea

KC60950

GS/TUV

German

EN60950



Mechanical Dimension:



Constant Voltage 12V 5A 60W LCD TV Power Supply Board 120V 60Hz 0





Applications:







For LED TV, TV screen, TV display, LED screen.….




INSTRUCTION:





- For indoor application, can meet IP64 waterproof rate.

- The mains plug is used as the disconnect device, the disconnect device shall be readily operable.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

- No naked flame source, such as lighted candles, should be placed on the apparatus.

- Maximum operating ambient for the equipment is 40℃.

- The apparatus should not be used in a confined space such as a bookcase.

- This appliance is not intended for use by persons (including children) with reduced physical,

   sensory, or mental capacities, or lack of experience and knowledge, unless they have been given

   supervision or instruction concerning use of the appliance by a person responsible for their Safety.

- Children should be supervised to ensure that they do not play with the appliance.
