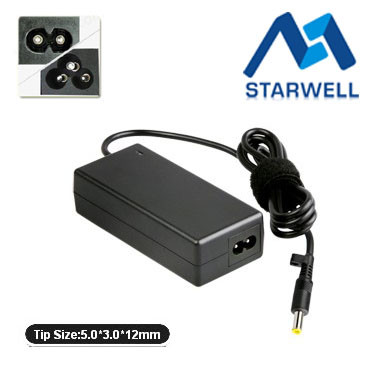

IBM ThinkPad 24V 1A 240V AC Desktop Power Adapter 24W C14 EN60950-1

IBM ThinkPad 24V 1A 240V AC Desktop Power Adapter 24W C14 EN60950-1

  • IBM ThinkPad 24V 1A 240V AC Desktop Power Adapter 24W C14 EN60950-1
IBM ThinkPad 24V 1A 240V AC Desktop Power Adapter 24W C14 EN60950-1
Product Details:
Place of Origin: China
Brand Name: STARWELL
Certification: UL,CE,ROHS, FCC,GS,SAA,C-TICK
Model Number: SW-00240200-S10
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: Carton box
Delivery Time: 10-15 days
Payment Terms: Ex works
Supply Ability: 1, 000, 000PCS/week
Contact Now
Detailed Product Description
High Light:

Desktop External Power Supply

,

universal power adapter





IBM ThinkPad 24V 1A 240V AC Desktop Power Adapter 24W C14 EN60950-1





Short Description:



> Output: 24V 1A

> Effiency: 85% minimum

> Color: Black or white

> DC jack: 5.5*2.1*10mm / 5.5*2.5*10mm

> Dc cable length: 1.5 meters  / 2 meters available

> Input voltage range: 100~240VAC

> Ripple and Noise: 80mV maximum

> DC jack: 5.5*2.1*10mm

> Net Weight: 250g

> Dimensiont:110(H)*51.5(W)*33.5(H)mm

> AC inlet:  C8, C6, C14 optional

> Certificate: UL,CE,FCC,GS, SAA,C-TICK,CB,KC certificates.

> Safety protection: over load, over voltage, short ciruict, open load protection.




Specifications



Input Rated Voltage :

100Vac~240Vac

Input Frequency Range:

47Hz~63Hz

Input Inrush Current :

0.8A max

Efficiency  :

85%(MIN)at Rated Voltage

Output:

24V 1A

Output power :

24W

Ripple and Noise :

<150Mv at full road with 20MHz bandwidth

Turn On Delay Time:

<3S  (AC:110V and full load)

Safety protection :

over voltage and current protection.

Leakage Current:

<5mA

USB connector:

5.5*2.1*10mm / 5.5*2.5*10mm

Operating Temperature:

0°C----+60°C

Storage Temperature:

-20°C----+85°C

Certificate:

CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK

Safety Standard :

EN60950-1 UL60950-1  ESD (EN61000 3-3)
CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B
AN/NZS CISPR 22:2006

Application:

For battery charger, mobile phone, cell phone, iphone etc…





MODEL LIST:



24W~36W SERIES
Model Input Voltage Power Output Voltage Output Current AC Inlet Type
SW-00240200-S10 100-240V AC 24W 12V  2A C8,C6
SW-00150160-S10 100-240V AC 24W 15V 1.6A C8,C6
SW-00240100-S10 100-240V AC 24W 24V 1A C8,C6
SW-00090300-S10 100-240V AC 27W 9V  3A C8,C6
SW-00240125-S10 100-240V AC 30W 24V 1.25A C8,C6
SW-00300100-S10 100-240V AC 30W 30V 1A C8,C6
SW-00XXXYYY-S10 SW-00XXXYYY-S10 ( XXX=090-240 means the output voltage is 9-
24V, YYY=001-600, means the output current is 0.01A-6A) .
UL number: E352029





Applications:



For laptop pc, computer, LCD Moniter power supply, CCTV power supply, electronic device power supply etc….





Instructions:



- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,

such as vases, shall be placed on the apparatus.

- The mains plug is used as the disconnect device, the disconnect device shall be readily operable.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

- No naked flame source, such as lighted candles, should be placed on the apparatus.

- Maximum operating ambient for the equipment is 40℃.

- The apparatus should not be used in a confined space such as a bookcase.

- This appliance is not intended for use by persons (including children) with reduced physical,

sensory, or mental capacities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their Safety.

- Children should be supervised to ensure that they do not play with the appliance.





Package Information :



1. Carton box dimension: 480*450*180mm
2. QTY: 50 pcs/carton
3. G.W: 11.5 KG
