Home ProductsRetractable iPhone Charger

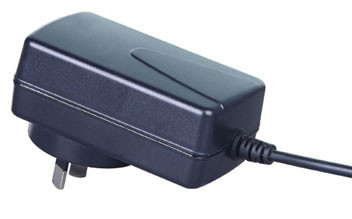

US AU UK Plug Wall Mount Power Adapter 12V DC 3A 36W EMC CE UL FCC

US AU UK Plug Wall Mount Power Adapter 12V DC 3A 36W EMC CE UL FCC

    • US AU UK Plug Wall Mount Power Adapter 12V DC 3A 36W EMC CE UL FCC
    • US AU UK Plug Wall Mount Power Adapter 12V DC 3A 36W EMC CE UL FCC
    • US AU UK Plug Wall Mount Power Adapter 12V DC 3A 36W EMC CE UL FCC
    • US AU UK Plug Wall Mount Power Adapter 12V DC 3A 36W EMC CE UL FCC
    • US AU UK Plug Wall Mount Power Adapter 12V DC 3A 36W EMC CE UL FCC
  • US AU UK Plug Wall Mount Power Adapter 12V DC 3A 36W EMC CE UL FCC

    Product Details:

    Place of Origin: China
    Brand Name: STARWELL
    Certification: UL,CE,ROHS, FCC,GS,SAA,C-TICK
    Model Number: SMS-0120030-S06US
    Net Weight:: 100g
    Plug:: EU, US, AU,UK available
    Cable length:: 1.2 meter / 1.5 meter / 2.0 meters available
    DC Jack:: 5.5 * 2.1 * 10mm / 5.5 * 2.5 * 10mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: negotiation
    Packaging Details: Carton box
    Delivery Time: 10-15 days
    Payment Terms: Ex works
    Supply Ability: 1, 000, 000PCS/week
    Payment:: Paypal / WU / TT available
    Contact Now
    Detailed Product Description





    US AU UK Plug Wall Mount Power Adapter 12V DC 3A 36W EMC CE UL FCC



    Feartures:



    > output: 12V 3A

    > Weight: 100g

    > Effiency: 85% minimum

    > Color: Black or white

    > input voltage range: 100~240VAC

    > Dc cable length: 1.5 meters / 1.2 meters

    > Ripple and Noise: 80mV maximum

    > DC jack: 5.5*2.1*10mm / 5.5*2.5*10mm

    > AC Plug:  US , EU , AU ,UK plug avaliable

    > Safety protection: over load, over voltage, short ciruict, open load protection.





    Specifications:



    Input Rated Voltage :

    100Vac~240Vac

    Input Frequency Range:

    47Hz~63Hz

    Input Inrush Current :

    0.3A max

    Efficiency  :

    85%(MIN)at Rated Voltage

    Output:

    12V 3A

    Output power :

    36W

    Ripple and Noise :

    <80Mv at full road with 20MHz bandwidth

    Turn On Delay Time:

    <3S  (AC:110V and full load)

    Safety protection :

    over voltage and current protection.

    Leakage Current:

    <5mA

    USB connector:

    5.5*2.1*10mm

    Operating Temperature:

    0°C----+60°C

    Storage Temperature:

    -20°C----+85°C

    Certificate:

    CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK

    Safety Standard :

    EN60950-1 UL60950-1  ESD (EN61000 3-3)
    CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B
    AN/NZS CISPR 22:2006

    Application:

    For battery charger, mobile phone, cell phone, iphone etc…





     Model List:

      36W SERIES



    Model Input Voltage Power Output Voltage Output Current Plug type
    SMS-01050500-S06EU 100-240VAC 25W 5V 5A EU,US,UK,AU
    SMS-01050500-S06US
    SMS-01050500-S06UK
    SMS-01050500-S06AU
    SMS-01090400-S06EU 100-240VAC 36W 9V 4A EU,US,UK,AU
    SMS-01090400-S06US
    SMS-01090400-S06UK
    SMS-01090400-S06AU
    SMS-01120300-S06EU 100-240VAC 36W 12V 3A EU,US,UK,AU
    SMS-01120300-S06US
    SMS-01120300-S06UK
    SMS-01120300-S06AU
    SMS-01180200-S06EU 100-240VAC 36W 18V 2A EU,US,UK,AU
    SMS-01180200-S06US
    SMS-01180200-S06UK
    SMS-01180200-S06AU
    SMS-01240150-S06EU 100-240VAC 18W 24V 1.5A EU,US,UK,AU
    SMS-01240150-S06US
    SMS-01240150-S06UK
    SMS-01240150-S06AU





    DRAWING:



    US AU UK Plug Wall Mount Power Adapter 12V DC 3A 36W EMC CE UL FCC





    US AU UK Plug Wall Mount Power Adapter 12V DC 3A 36W EMC CE UL FCC



    EMC Standards & Safety Standards / EMC Standards





    1.1.    EMC Standards



    GB9254

    GB17625.1

    GB13837

    FCC- Part15

    EN 55022

    EN55024

    CISPR 22

    EN 61000-4-4

    EN 61000-3-2

    EN 61000-3-3

    EN 61000-4-2

    EN 61000-4-3

    EN 61000-4-5

    EN 61000-4-6

    EN 61000-4-8

    EN 61000-4-11





    1.2.    Safety Standards



    Type

    Country

    Standard

    Type

    Country

    Standard

    CCC

    China

    GB4943

    CE

    Europe

    EN60950-1

    CCC

    China

    GB8898

    CB

    CB

    IEC60950

    UL/CUL

    USA

    UL60950-1

    C-TICK

    Australia

    AS/NZ60950

    KC

    Korea

    KC60950

    GS/TUV

    German

    EN60950





    INSTRUCTION:



    - The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,

    such as vases, shall be placed on the apparatus.

    - The mains plug is used as the disconnect device, the disconnect device shall be readily operable.

    - The socket-outlet shall be installed near the equipment and shall be easily accessible.

    - No naked flame source, such as lighted candles, should be placed on the apparatus.

    - Maximum operating ambient for the equipment is 40℃.

    - The apparatus should not be used in a confined space such as a bookcase.

    - This appliance is not intended for use by persons (including children) with reduced physical,

    sensory, or mental capacities, or lack of experience and knowledge, unless they have been given

    supervision or instruction concerning use of the appliance by a person responsible for their Safety.

    - Children should be supervised to ensure that they do not play with the appliance.
