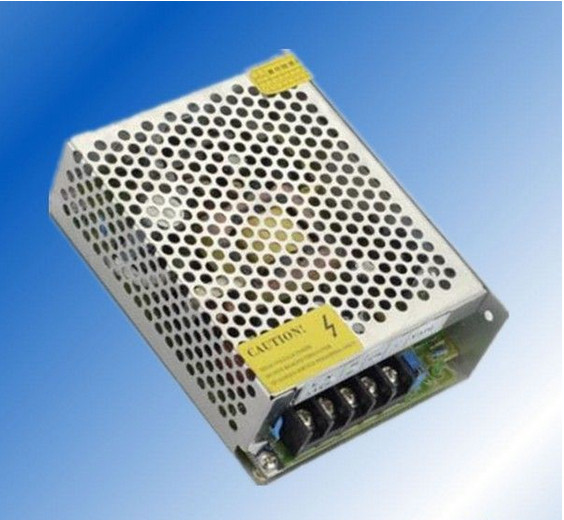

24 Volt High Power 120V 60Hz CCTV Power Supply 300W 12.5A ESD / CAS

24 Volt High Power 120V 60Hz CCTV Power Supply 300W 12.5A ESD / CAS

  • 24 Volt High Power 120V 60Hz CCTV Power Supply 300W 12.5A ESD / CAS
24 Volt High Power 120V 60Hz CCTV Power Supply 300W 12.5A ESD / CAS
Product Details:
Place of Origin: China
Brand Name: STARWELL
Certification: UL,CE,ROHS, FCC,GS,SAA,C-TICK
Model Number: ND-300W-24
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Carton box
Delivery Time: 10-15 days
Payment Terms: Ex works
Supply Ability: 1, 000, 000PCS/week
Contact Now
Detailed Product Description
High Light:

Industrial Power Supply

,

240V To 12V Power Supply





24 Volt High Power 120V 60Hz CCTV Power Supply 300W 12.5A ESD / CAS





Features:



> output: 24V 12.5A

> Power:300W

> Net Weight: 900g

> Effiency: 85% minimum

> Dimension:215*115*50mm

> material: metal case

> input voltage range: 100~240VAC

> Ripple and Noise: 200mV maximum

> Output type: input&output terminal

> Certificate: UL,CE,FCC,GS, SAA,C-TICK,CB,KC certificates.

> Safety protection: over load, over voltage, short ciruict, open load protection.




Specifications:



Input Rated Voltage :

100Vac~240Vac

Input Frequency Range:

47Hz~63Hz

Input Inrush Current :

0.8A max

Efficiency  :

85%(MIN)at Rated Voltage

Output:

24V 12.5A

Output power :

300W

Ripple and Noise :

<150Mv at full road with 20MHz bandwidth

Turn On Delay Time:

<3S  (AC:110V and full load)

Safety protection :

over voltage and current protection.

Leakage Current:

<5mA

USB connector:

5.5*2.1*10mm

Operating Temperature:

0°C----+60°C

Storage Temperature:

-20°C----+85°C

Certificate:

CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK

Safety Standard :

EN60950-1 UL60950-1  ESD (EN61000 3-3)
CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B
AN/NZS CISPR 22:2006

Application:

For battery charger, mobile phone, cell phone, iphone etc…





Model List:



INDUSTRIAL POWER SUPPLY

Model

Input Voltage

Output Power

Output Volt

Output current

Dimension

N.W
(KG)

ND-15W

100V~240V

15W

12V

1.25A

70*40*30mm

0.07KG

ND-25W-12

100V~240V

25W

12V

2A

85*58*38mm

0.16KG

ND-25W-24

24V

1A

ND-36W-12

100V~240V

36W

12V

3A

85*58*38mm

0.17KG

ND-36W-24

24V

1.5A

ND-50W-12

100V~240V

50W

12V

4A

110*78*38mm

0.25KG

ND-50W-24

24V

2A

ND-60W-12

100V~240V

60W

12V

5A

110*78*38mm

0.26KG

ND-60W-24

24V

2.5A

ND-100W-12

100V~240V

100W

12V

8.3A

159*98*38mm

0.5KG

ND-100W-24

24V

4.2A

ND-120W-12

100V~240V

120W

12V

10A

159*98*38mm

053KG

ND-120W-24

24V

5A

ND-150W-12

100V~240V

150W

12V

12.5A

199*98*38mm

0.6KG

ND-150W-24

24V

6.25A

ND-180W-12

100V~240V

180W

12V

15A

199*98*38mm

0.63KG

ND-180W-24

24V

7.5A

ND-200W-12

100V~240V

200W

12V

16.7A

200*110*50mm

0.8KG

ND-200W-24

24V

8.3A

ND-250W-12

100V~240V

250W

12V

20.8A

200*110*50mm

0.87KG

ND-250W-24

24V

10.4A

ND-300W-12

100V~240V

300W

12V

25A

215*115*50mm

0.9KG

ND-300W-24

24V

12.5A

ND-350W-12

100V~240V

350W

12V

30A

215*115*50mm

0.95KG

ND-350W-24

24V

15A

ND-400W-12

100V~240V

400W

12V

33A

260*120*65mm

1.15KG

ND-500W-24

500W

12V

42A



RAINPROOF POWER SUPPLY
Model Input Voltage Output Power Output Volt Output current Dimension N.W
(KG)
ND-R36W-12 100V~240V 36W 12V 3A 110*76*45mm 0.3KG
ND-R36W-24 24V 1.5A
ND-R60W-12 100V~240V 60W 12V 5A 145*95*45mm 0.45KG
ND-R60W-24 24V 2.5A
ND-R120W-12 100V~240V 120W 12V 10A 185*120*60mm 0.7KG
ND-R120W-24 24V 5A
ND-R150W-12 100V~240V 150W 12V 12.5A 225*120*60mm 0.8KG
ND-R150W-24 24V 6.25A
ND-R200W-12 100V~240V 120W 12V 16.7A 230*140*60mm 1.15KG
ND-R200W-24 24V 8.3A
ND-R250W-12 100V~240V 150W 12V 20.8A 230*140*60mm 1.15KG
ND-R250W-24 24V 10.4A
ND-R350W-12 100V~240V 360W 12V 30A 245*140*60mm 1.4KG
ND-R350W-24 24V 15A
ND-R400W-12 100V~240V 400W 12V 33.3A 245*140*60mm 1.4KG
ND-R400W-24 24V 16.6A





Mechanical Dimension:



24 Volt High Power 120V 60Hz CCTV Power Supply 300W 12.5A ESD / CAS 0





EMC Standards & Safety Standards / EMC Standards



1.1.    EMC Standards



GB9254

GB17625.1

GB13837

FCC- Part15

EN 55022

EN55024

CISPR 22

EN 61000-4-4

EN 61000-3-2

EN 61000-3-3

EN 61000-4-2

EN 61000-4-3

EN 61000-4-5

EN 61000-4-6

EN 61000-4-8

         EN 61000-4-11



1.2.    Safety Standards



Type

Country

Standard

Type

Country

Standard

CCC

China

GB4943

CE

Europe

EN60950-1

CCC

China

GB8898

CB

CB

IEC60950

UL/CUL

USA

UL60950-1

C-TICK

Australia

AS/NZ60950

KC

Korea

KC60950

GS/TUV

German

EN60950





Applications:



For laptop pc, computer, LCD Moniter power supply, CCTV power supply, electronic device power supply etc….



INSTRUCTION:



- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,

such as vases, shall be placed on the apparatus.

- The mains plug is used as the disconnect device, the disconnect device shall be readily operable.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

- No naked flame source, such as lighted candles, should be placed on the apparatus.

- Maximum operating ambient for the equipment is 40℃.

- The apparatus should not be used in a confined space such as a bookcase.

- This appliance is not intended for use by persons (including children) with reduced physical,

   sensory, or mental capacities, or lack of experience and knowledge, unless they have been given

   supervision or instruction concerning use of the appliance by a person responsible for their Safety.

- Children should be supervised to ensure that they do not play with the appliance.





Package information :



1. carton box dimension: 480*450*180mm
2. QTY: 50 pcs/carton
3. G.W: 11.5 KG
