Place of Origin: | Guangdong |
Brand Name: | E-Stars |
Certification: | CE, FCC, UL, GS |
Model Number: | EA1020CR |
Minimum Order Quantity: | 1000PC/order |
---|---|
Price: | 5-9USD |
Packaging Details: | with BOX or OEM |
Delivery Time: | 30days |
Payment Terms: | T/T in advance |
Supply Ability: | 600K/Month |
Highlight: | AC DC Converter Power Supply,switched adapter charger,interchangeable ac plug Power Supplier |
---|

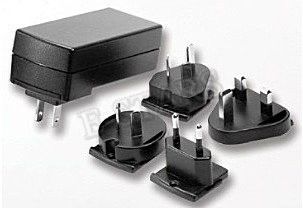

20V 1A Switch-mode power supply with universal AC plug, interchangeable plug adaptor
EA1020CR 20Winterchangeable adapter, power supply, power adapter, switching adapter, switching power supply, network adapter, network power adapter, networking power adapter, networking adapter, dc adapter, dc power, travel adapter, switching power, ac power adapter, ac power supply, universal adapter, ac dc adapter, notebook ac adapter, laptop adapter, usb adapter, universal adapter, ac/dc adapter
13~ 20V DC, 1.5A Max, 20W Max.
Interchangeable AC Plug
Power range: 20W
.Universal AC input 90 to 264V AC
.Frequency: 47 to 63Hz
.Low ripple noise
.Wall mount type
.Interchangeable AC plug: USA, EU, UK, China and SAA (Optional)
.Output voltage available from 13 to 20V DC, maximum 1.5A
.Optional output connectors
.Safety: UL/CUL, CE, TUV, CCC, FCC, DoIR+C-Tick
.EMI/EMC: FCC part 15 class B and EN 55022 class B
.All models meet RoHS and WEEE
.Dimensions (L x W x H): 100L x 45W x 31H mm
.Weight:220 grams
30W series as following:
Model NO. | Max.output | Output | Min. | Max. | Load | Line | Ripple& |
Power(W) | Voltage(V0) | Load(lo) | Load(lo) | Regulation | Regulation | Noise | |
EA1020AR | 20W | 5~8V | 0 | 4A | ±5% | ±1% | 100mV |
EA1020R | 20W | 9~12V | 0 | 2A | ±5% | ±1% | 250mV |
EA1020CR | 20W | 13~20V | 0 | 1.54A | ±5% | ±1% | 250mV |
EA1020DR | 20W | 21~35V | 0 | 0.95A | ±5% | ±1% | 350mV |
EA1030AR | 25W | 5~8V | 0 | 3.5A | ±5% | ±1% | 100mV |
EA1030R | 30W | 9~12V | 0 | 3.0A | ±5% | ±1% | 250mV |
EA1030CR | 30W | 13~20V | 0 | 2.3A | ±5% | ±1% | 250mV |
EA1030DR | 30W | 21~35V | 0 | 1.42A | ±5% | ±1% | 350mV |
EA1036R | 36W | 12V | 0 | 3A | ±5% | ±1% | 250mV |
EA1036DR | 36W | 21~35V | 0 | 1.5A | ±5% | ±1% | 350mV |
