Place of Origin: | China |
Brand Name: | STARWELL |
Certification: | UL,CE,ROHS, FCC,GS,SAA,C-TICK |
Model Number: | LD128P |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | Carton box |
Delivery Time: | 10-15 days |
Payment Terms: | Ex works |
Supply Ability: | 1, 000, 000PCS/week |
High Light: | Slim Power Supply,Thin Power Supply |
---|

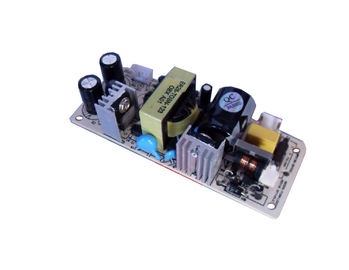

EN 55015 AC 220V 12V DC 8A LCD TV Power Supply CE ROHS Approval 96W
Features :
> Model : LD128P
> input voltage range : 100~240VAC
> output : 12V 8A 96W
> Effiency : 85% minimum
> Ripple and Noise : 100mV maximum
> Dimension : 160*62*26mm
> Certificate : UL,CE,FCC,GS, SAA,C-TICK,CB,KC certificates.
> Safety protection : over load, over voltage, short ciruict, open load protection.
Specifications
Input Rated Voltage : |
100Vac~240Vac |
Input Frequency Range: |
47Hz~63Hz |
Input Inrush Current : |
1.8A max |
Efficiency : |
85%(MIN)at Rated Voltage |
Output: |
12V 8A |
Output power : |
96W |
Ripple and Noise : |
<150Mv at full road with 20MHz bandwidth |
Turn On Delay Time: |
<3S (AC:110V and full load) |
Safety protection : |
over voltage and current protection. |
Leakage Current: |
<5mA |
Certificate: |
CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK |
Safety Standard : |
EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006 |
Application: |
LED TV, TV screen, TV display. |
MODEL LIST:
LCD tv power supply | ||||||||
Model | Input Voltage | Output Power | Output (1) | Output(2) | Output(3) | Output(4) | LCD inch |
Dimension (mm) |
LD122P | 90-264V | 36W | 12V3A | NO | NO | NO | 15-17'' | 90*40*20 |
LD123P | 90-264V | 36W | 12V3A | NO | NO | NO | 15-17'' | 90*40*20 |
LD050P | 90-264V | 50W | 12V4A | NO | NO | NO | 15-19'' | 130*50*23 |
LD125P | 90-264V | 60W | 12V5A | NO | NO | NO | 15-22'' | 130*50*23 |
LD128P | 90-264V | 96W | 12V8A | NO | NO | NO | 15-22'' | 160*62*26 |
LD1200P | 90-264V | 120W | 12V10A | NO | NO | NO | 15-23'' | 160*62*26 |
LD2600P | 90-264V | 96W | 12V4A | 24V2A | NO | NO | 24-26'' | 151*100*30 |
LED TV POWER SUPPLY | ||||||||
Model | Input Voltage | Output Power | Output (1) | Output(2) | Output(3) | Output(4) |
screen size |
Dimension (mm) |
LD1350P | 90-264V | 36W | 12V3A | NO | NO | NO | 15-19'' | 165*65*13 |
LD1360P | 90-264V | 60W | 12V5A | NO | NO | NO | 15-22'' | 165*65*13 |
LD1361P | 90-264V | 60W | 12V4A | 5V2A | NO | NO | 15-22'' | 165*65*13 |
LD1905P | 90-264V | 95W | 19V5A | NO | NO | NO | 15-23'' | 165*70*13 |
LD3200P | 90-264V | 100W | 12V2A | 24V2.5A | 5V3A | 5VSB0.5A | 26-32'' | 180*180*13 |
LD4200P | 90-264V | 180W | 12V5A | 24V4A | 5V4A | 5VSB2.0A | 37-47'' | 180*180*13 |
LD5500P | 90-264V | 280W | 12V5A | 24V8A | 5V3A | 5VSB2.0A | 47-55'' | 280*180*13 |
EMC Standards & Safety Standards / EMC Standards
GB9254 |
GB17625.1 |
GB13837 |
FCC- Part15 |
EN 55022 |
EN55024 |
CISPR 22 |
EN 61000-4-4 |
EN 61000-3-2 |
EN 61000-3-3 |
EN 61000-4-2 |
EN 61000-4-3 |
EN 61000-4-5 |
EN 61000-4-6 |
EN 61000-4-8 |
EN 61000-4-11 |
Type |
Country |
Standard |
Type |
Country |
Standard |
CCC |
China |
GB4943 |
CE |
Europe |
EN60950-1 |
CCC |
China |
GB8898 |
CB |
CB |
IEC60950 |
UL/CUL |
USA |
UL60950-1 |
C-TICK |
Australia |
AS/NZ60950 |
KC |
Korea |
KC60950 |
GS/TUV |
German |
EN60950 |
Mechanical Dimension :
Applications:
For LED TV, TV screen, TV display, LED screen.….
INSTRUCTION :
- For indoor application, can meet IP64 waterproof rate.
- The mains plug is used as the disconnect device, the disconnect device shall be readily operable.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.
- No naked flame source, such as lighted candles, should be placed on the apparatus.
- Maximum operating ambient for the equipment is 40℃.
- The apparatus should not be used in a confined space such as a bookcase.
- This appliance is not intended for use by persons (including children) with reduced physical,
sensory, or mental capacities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their Safety.
- Children should be supervised to ensure that they do not play with the appliance.
