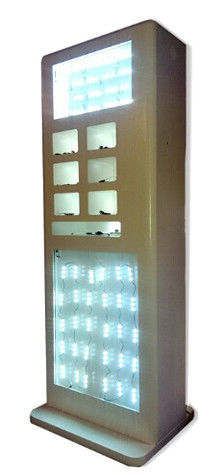

Public Cell Phone Charging Kiosk station with 1280 × 1024 high resolution

Public Cell Phone Charging Kiosk station with 1280 × 1024 high resolution

It supports all brands cellphones, can charge 7 devices at the same time.

Our clients can choose different brands chargers, print their own company's logo according to their demands.


1. Computer parts:

Industrial Computer: Industrial Motherboard: SV-H6116

CPU: Intel G2020
RAM:2GB;   Hard Disk:500G
6 RS-232 Ports;8 USB Ports,2* 10/100M Net Port
Integrated Net Card, Sound Card,View Card
Computer case and power supply

2. Monitor:17" LCD
Brightness: 300lumens/m2
Contrast: 450:1
Response Time:5ms；Dot pitch: 0.297；
Max. resolution:1280×1024

3. Touch Screen:17" Infrared

    High Transparence, high precision and durability
    antirust,anti-acid,anti-dust
    Thickness: 6mm, Max: 4096×4096
    Surface Hardness: Mohs' hardness rating of 7
    Force<100G; Response Time: 5ms


4. Fingerprint Reader: URU 4500

Excellent image quality(700dip),encrypted image data, high accurate. USB port

5. WiFi: TP-LINK TL-WN350G

Wireless Standard:IEEE 802.11b,IEEE 802.11g/Transmit Transmitting speed rate:11g:54, 48, 36, 24, 18, 12, 9, 6M(Auto adaptive), 11b:11, 5.5, 2, 1M(Auto adaptive)Mbps/Interface:PCI port,32 digits PCI 2.1, 2.2, 2.3/Covering range: indoor Max. 100M, outdoor Max.300M

6.  6*12*Cell phone chargers:Cellphone Charger for 3 iphone, 2 Blackberry, 2 Samsung, and 1 Nokia chargers

7.  6*12*E-locks:Will open or close the door after input pin

8.  Speakers:Left and right bi-channel; amplified output; Multimedia speaker

9.  Enclosure:KVS-9203
Durable steel frame, Power coated; Slim and smart design; Easy to install and operate;
Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, color upon request.

10. OS Software:Microsoft Windows 7 (Trial version),  all hardware drivers are available

11. Packing:Bubble Foam, Carton, Wooden Case

The design,configuration and interior part is subject to change of customers’ requirements
