Place of Origin: | China |
Brand Name: | STARWELL |
Certification: | UL,CE,ROHS, FCC,GS,SAA,C-TICK |
Model Number: | SW-00240200-S10 |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | negotiation |
Packaging Details: | Carton box |
Delivery Time: | 10-15 days |
Payment Terms: | Ex works |
Supply Ability: | 1, 000, 000PCS/week |
High Light: | Desktop Switching Power Supply,universal power adapter |
---|

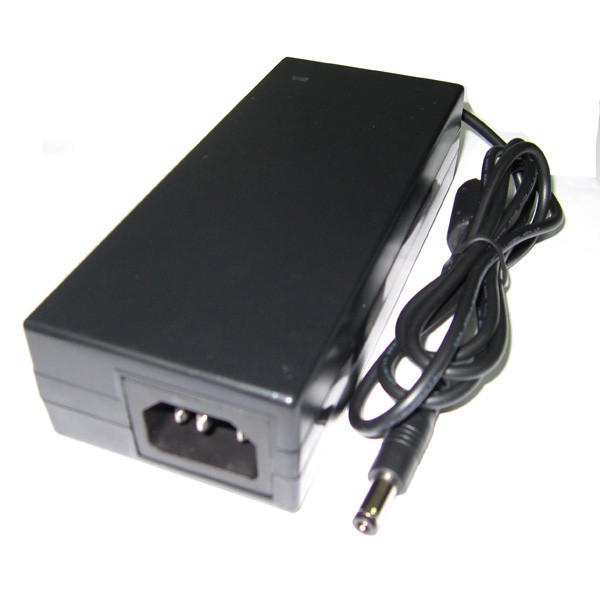

UL60950-1 100V AC Apple Macbook Desktop Power Adapter 30V 1A 30W
Short Description:
> Output: 30V 1A
> Effiency: 85% minimum
> Color: Black or white
> Net Weight: 250g
> AC inlet: C8, C6, C14 optional
> DC jack: 5.5*2.1*10mm / 5.5*2.5*10mm
> Dc cable length: 1.5 meters / 2 meters available
> Input voltage range: 100~240VAC
> Ripple and Noise: 80mV maximum
> Dimensiont:110(H)*51.5(W)*33.5(H)mm
> Certificate: UL,CE,FCC,GS, SAA,C-TICK,CB,KC certificates.
> Safety protection: over load, over voltage, short ciruict, open load protection.
Specifications
Input Rated Voltage : |
100Vac~240Vac |
Input Frequency Range: |
47Hz~63Hz |
Input Inrush Current : |
0.8A max |
Efficiency : |
85%(MIN)at Rated Voltage |
Output: |
30V 1A |
Output power : |
30W |
Ripple and Noise : |
<150Mv at full road with 20MHz bandwidth |
Turn On Delay Time: |
<3S (AC:110V and full load) |
Safety protection : |
over voltage and current protection. |
Leakage Current: |
<5mA |
USB connector: |
5.5*2.1*10mm / 5.5*2.5*10mm |
Operating Temperature: |
0°C----+60°C |
Storage Temperature: |
-20°C----+85°C |
Certificate: |
CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK |
Safety Standard : |
EN60950-1 UL60950-1 ESD (EN61000 3-3) |
Application: |
For battery charger, mobile phone, cell phone, iphone etc… |
Model List:
24W~36W SERIES | |||||
Model | Input Voltage | Power | Output Voltage | Output Current | AC Inlet Type |
SW-00240200-S10 | 100-240V AC | 24W | 12V | 2A | C8,C6 |
SW-00150160-S10 | 100-240V AC | 24W | 15V | 1.6A | C8,C6 |
SW-00240100-S10 | 100-240V AC | 24W | 24V | 1A | C8,C6 |
SW-00090300-S10 | 100-240V AC | 27W | 9V | 3A | C8,C6 |
SW-00240125-S10 | 100-240V AC | 30W | 24V | 1.25A | C8,C6 |
SW-00300100-S10 | 100-240V AC | 30W | 30V | 1A | C8,C6 |
SW-00XXXYYY-S10 | SW-00XXXYYY-S10 ( XXX=090-240 means the output voltage is 9- | ||||
24V, YYY=001-600, means the output current is 0.01A-6A) . | |||||
UL number: E352029 |
Applications:
For laptop pc, computer, LCD Moniter power supply, CCTV power supply, electronic device power supply etc….
Instructions:
- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
- The mains plug is used as the disconnect device, the disconnect device shall be readily operable.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.
- No naked flame source, such as lighted candles, should be placed on the apparatus.
- Maximum operating ambient for the equipment is 40℃.
- The apparatus should not be used in a confined space such as a bookcase.
- This appliance is not intended for use by persons (including children) with reduced physical,
sensory, or mental capacities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their Safety.
- Children should be supervised to ensure that they do not play with the appliance.
Package Information :
1. Carton box dimension: 480*450*180mm
2. QTY: 50 pcs/carton
3. G.W: 11.5 KG
