Wall Mount Mobile Phone Usb Charger 12V CB IEC60950 , Black / White
Features:
> input voltage range: 100~240VAC
> output: 12V 0.5A
> Effiency: 85% minimum
> Ripple and Noise: 50mV maximum
> Color: Black or white
> Dc cable length: USB A type femal connector
> Weight: 50g
> AC Plug: US , EU , AU ,UK plug available
> Certificate: UL,CE,FCC,GS, SAA,C-TICK,CB,KC certificates.
> Safety protection: over load, over voltage, short ciruict, open load protection.
Specifications
|
Input Rated Voltage : |
100Vac~240Vac |
|
Input Frequency Range: |
47Hz~63Hz |
|
Input Inrush Current : |
0.3A max |
|
Efficiency : |
85%(MIN)at Rated Voltage |
|
Output: |
12V 0.5A |
|
Output power : |
6W |
|
Ripple and Noise : |
<50Mv at full road with 20MHz bandwidth |
|
Turn On Delay Time: |
<3S (AC:110V and full load) |
|
Safety protection : |
over voltage and current protection. |
|
Leakage Current: |
<5mA |
|
USB connector: |
USB FEMALE connector |
|
Operating Temperature: |
0°C----+60°C |
|
Storage Temperature: |
-20°C----+85°C |
|
Certificate: |
CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK |
|
Safety Standard : |
EN60950-1 UL60950-1 ESD (EN61000 3-3) |
|
Application: |
For battery charger, mobile phone, cell phone, iphone etc… |
Model List:
|
USB CHARGER |
|||||
|
Model |
Input Voltage |
Power |
Output Voltage |
Output Current |
Plug type |
|
SAP030030XX |
100-240VAC |
1W |
3V |
300mA |
US,AU,EU,UK |
|
SAP050025XX |
100-240VAC |
2W |
5V |
250mA |
US,AU,EU,UK |
|
SAP050050XX |
100-240VAC |
2.5W |
5V |
500mA |
US,AU,EU,UK |
|
SAP050100XX |
100-240VAC |
5W |
5V |
1A |
US,AU,EU,UK |
|
SAP120050XX |
100-240VAC |
6W |
12V |
0.5A |
US,AU,EU,UK |
|
SAP050200XX |
100-240VAC |
10W |
5V |
2A |
US,AU,EU,UK |
|
SAP050240XX |
100-240VAC |
12W |
5V |
2.4A |
US,AU,EU,UK |
|
SAPXXXYYYZZ |
SAPXXXYYYZZ ( XXX=030-120 means the output voltage is 3-12V |
||||
|
YYY=001-200, means the output current is 0.01-2.50A |
|||||
|
ZZ= US, AU,EU,UK plug |
|||||
EMC Standards & Safety Standards / EMC Standards
|
GB9254 |
GB17625.1 |
GB13837 |
FCC- Part15 |
|
EN 55022 |
EN55024 |
CISPR 22 |
EN 61000-4-4 |
|
EN 61000-3-2 |
EN 61000-3-3 |
EN 61000-4-2 |
EN 61000-4-3 |
|
EN 61000-4-5 |
EN 61000-4-6 |
EN 61000-4-8 |
EN 61000-4-11 |
|
Type |
Country |
Standard |
Type |
Country |
Standard |
|
CCC |
China |
GB4943 |
CE |
Europe |
EN60950-1 |
|
CCC |
China |
GB8898 |
CB |
CB |
IEC60950 |
|
UL/CUL |
USA |
UL60950-1 |
C-TICK |
Australia |
AS/NZ60950 |
|
KC |
Korea |
KC60950 |
GS/TUV |
German |
EN60950 |

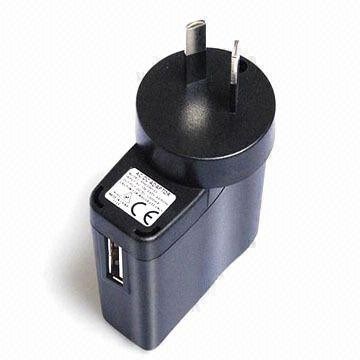

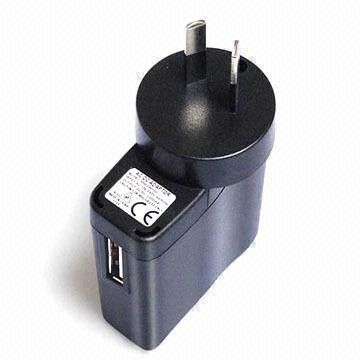

PRODUCT PICTURES:
Mechanical Dimension:
Applications:
1. For Mobile phone, cell phone, battery charger
2. Charger for Li-ion battery
3. Electronic device
Note:
This products is designed for mobile device, charger of cell phone. For indoor use only.
