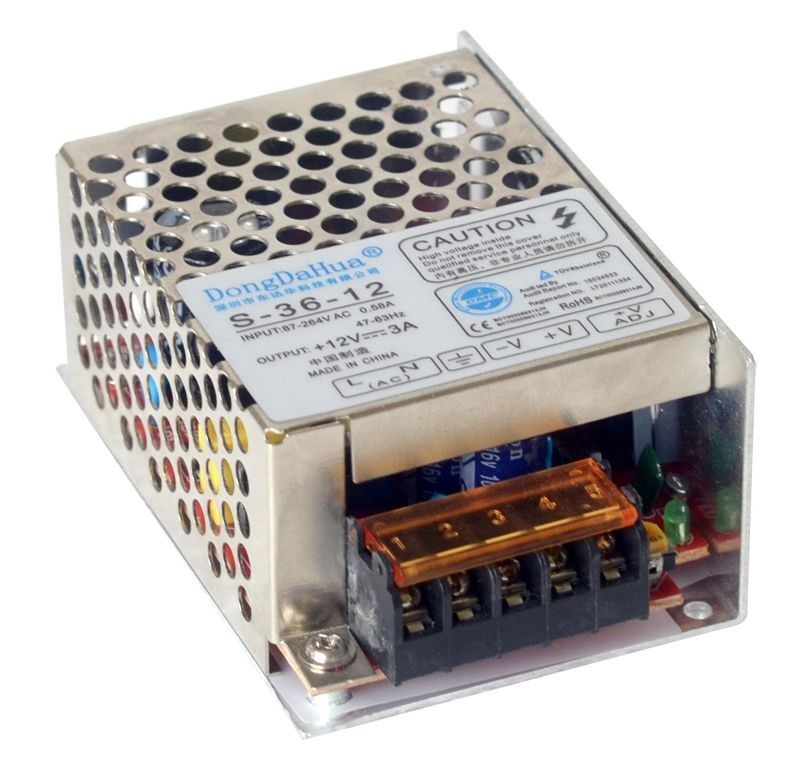

AC - DC Open Frame Built-in LED Display Power Supply with stable output voltage

Product Electric Parameters

Input specification

Input voltage

AC90V---264V

Input frequency

47-63Hz

Input surge

20A@120VAC  40A@230VAC

Output specification

Start-up time

≦1S (230V Input, Io=100%)

keep time

≧20mS (230V Input, Io=100%)

Voltage regulation

(full)≦0.5%

Protection function

Overload protection

105% - 150% rated power,  automatic recovery

Over-voltage protection

105% - 150% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input--ground

1500VAC/1min

Output---ground

500VAC/1min

Safety standards

According with GB4943,  EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A;  EPA7196; EPA3540C;EPA8270C standards.

E M C standards

According with EN55022 class A EN61347-2-13:2008 standards

Environmental

working temperature

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Storage temperature

- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

height above sea level

≦2000M

Structure

Size (mm)

85(L)*58(W)*38(H)

Cooling method

Cooling method

Natural cooling air convection

Weight

0..23KG/PCS
