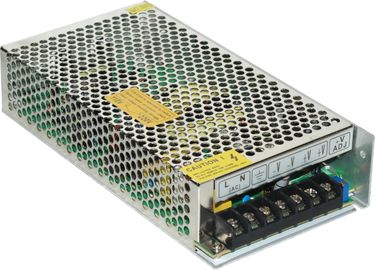

Over-voltage Protection Standard LED Display Power Supply 150W 5VDC 30A IP20 EN60950-1

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	DongDaHua
Certification:	CE & ROSH
Model Number:	S-150-5

Payment & Shipping Terms:

Packaging Details:	As for your requirement
Delivery Time:	As per your order quantity
Payment Terms:	T/T & L/C
Supply Ability:	8000 Pieces/Day

Contact Now

Detailed Product Description

Highlight:

LED Power Supply Driver

Constant Current LED Power Supply

Over-voltage Protection Standard LED Display Power Suppy 150W 5VDC 30A IP20 EN60950-1

Competitive Advantage:

· built-in EMI filter

· 100% load test

· Full range of input voltage

· output voltage accurate and stable

· Output over-voltage, over-current and short-circuit protection

· Output low ripple and noise

· Two year warranty

· Average working no trouble ＞50, 000 hours

Specifications:

Product Electric Parameters
Input specification	Input voltage		AC90V---110V AC210V---260V
	Input frequency		47-63Hz
	Input surge		20A@120VAC 40A@230VAC
Output specification	Start-up time		≦1S (230V Input, Io=100%)
	keep time		≧20mS (230V Input, Io=100%)
	Voltage regulation		(full)≦0.5%
Protection function	Overload protection		105% - 150% rated power, automatic recovery
	Over-voltage protection		105% - 150% of the rated voltage
Insulation intensity	Input---output		1500VAC/1min
	Input--ground		1500VAC/1min
	Output---ground		500VAC/1min
Safety standards	According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards.
E M C standards	According with EN55022 class A EN61347-2-13:2008 standards
Environmental	working temperature	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature	- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	height above sea level	≦2000M
Structure	Size (mm)	199(L)98(W)42(H)
Cooling method	Cooling method	Natural cooling air convection
Weight	0.55KG/PCS
