| Place of Origin: | China |
| Brand Name: | VAPOV |
| Certification: | CE/ROHS/FCC |
| Model Number: | VAP402CC |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | 1.Color Box+Blister 2.Color Card+Blister 3.PE+white box or hardpaper box |
| Delivery Time: | 25 working days |
| Payment Terms: | 30% deposit, L/C, T/T, Western Union,Paypal |
| Supply Ability: | 300000 pcs per month |
| Output: | 5V 6.1A,5V 6.4A | Input: | 12V-24V |
|---|---|---|---|

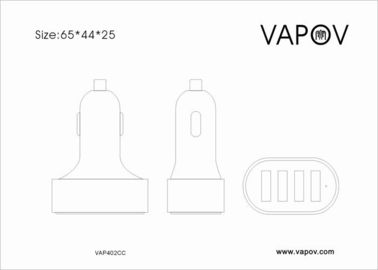

| Size: | 65*44*25 | Shell: | PC |
| Protection: | Short Circuit Over Charge Over Heat Over Voltage | Application: | Apple, Android Mobile Phone, Tablet,GPS, Game Player |
| Standard: | CE/ROHS/FCC | Material: | ABS/PC |
| Warranty: | 1 Year | Factory: | Manufacturer |
| High Light: | four port usb car charger,multiple usb car charger |
||

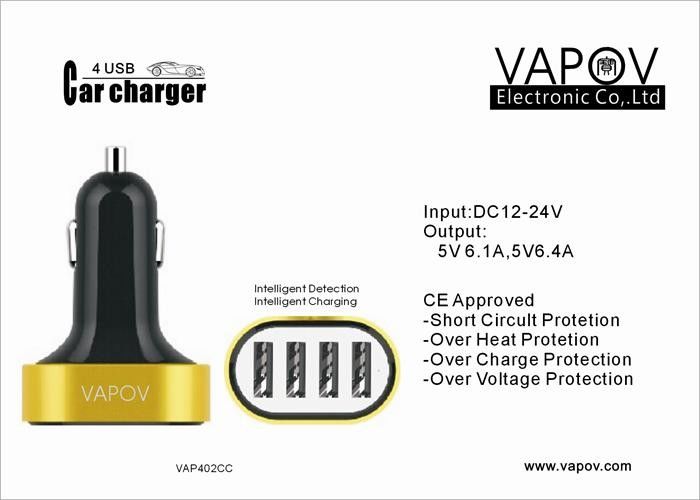

CE approved 6.1A Smart 4 Port USB Car Charger for iPhone6 / Samsung / Android Mobile phone /Tablet
1. Input Features:
| Rated input voltage | DC12-24V |
| Input voltage range | DC10-28V |
| Efficiency | 88-94% |
2. Output characteristics:
Rated output | Specification limits | Remark | |
Min value | Max value | ||
Unload output voltage | +4.9VDC | +5.3VDC |
|
Full load output voltage | +4.75VDC | +5.25VDC |
|
Output current | 0 | 6.1A/6.4A |
|
Cc mode rate load cold ripple |
| mV |
|
Over current protection |
| A | Adjustable |
Turn-on delay time |
| ≤3S |
|
Hold-up time | 8mS |
| Full load |
3. Protective properties:
1) Over current protection
When output current is greater than the setted under any conditions,the protection mode will be on;Otherwise after output current becoming lower than the set one, the charger will automatically restart work.
2) Short circuit protection
When short circuit occurs under any conditions, the protection mode will paly its role;after its disappearring, the charger will automatically restart work again.
3) Over temperature protection
After the charger been on work for a long time, when the temperature is higher than that of IC set working temperature, the protection mode will be on. Otherwise, when the temperature drops to IC set temperature ,the charger will automatically restart work again..
4) Over voltage protection
When output voltage is greater than the set one, the protection mode will be on.However, if the output voltage drops to set level,the charger will automatically restart its work as well.
4.EMI Test Report
5.Product Features
1) With Smart IC Intelligent Power Technology
2) Automatically identify devices( Apple, Android, Samsung etc mobile phone and tablet) and charge devices at the most optimized output
